Battery packs and Chargers

2025-04-30 16_51_25-Check Mark In Circle Icon-Bilder_ Stock-Fotos & -Videos. _ Adobe Stock

Swappable battery packs

2025-04-30 16_51_25-Check Mark In Circle Icon-Bilder_ Stock-Fotos & -Videos. _ Adobe Stock

Portable Charging docks

2025-04-30 16_51_25-Check Mark In Circle Icon-Bilder_ Stock-Fotos & -Videos. _ Adobe Stock

Quick Change Battery

BSR - X4 & X5 Battery Pack  - 36 to 44 HP

SPECIFICATION

  • Swapping time:  Under 2 min.

  • Cooling: Air cooling

  • BMS: 1x BMS and physical fuse protection

  • Capacity: 56Ah (5300 wh)

  • Discharge power: 450A/96VDC

  • Charging power: 40A/96VDC

  • Weights: 32.0 Kg (70.5 lbs)

  • Charging speed: 30 min (20-90%)

  • Warranty: 1 year unlimited hours

  • After warranty: Buy Back option after the warranty

  • Repair option: Yes

  • Technology: Li-Ion

BSR - X3 Battery Pack - Peak 22 HP

SPECIFICATION

  • Swapping time:  Under 2 min.

  • Cooling: Air cooling

  • BMS: 1x BMS and physical fuse protection

  • Capacity: 28Ah (2600 wh)

  • Discharge power: 180A/96VDC

  • Charging power: 20A/96VDC

  • Weights: 28.0 Kg (39.6 lbs)

  • Charging speed: 30 min (20-90%)

  • Warranty: 1 year unlimited hours

  • After warranty: Buy Back option after the warranty

  • Repair option: Yes

  • Technology: Li-Ion

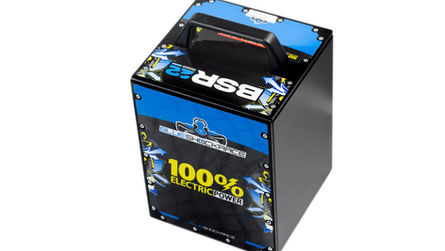

BSR X2 and Rental battery pack - Peak - 12 HP

SPECIFICATION

  • Swapping time:  Under 15 sec.

  • Cooling: Air cooling

  • BMS: 2x BMS and physical fuse protection

  • Capacity: 35Ah (1600 wh)

  • Discharge power: 200A/48VDC

  • Charging power: 40A/48VDC

  • Weights: 12.5 Kg (26.5 lbs)

  • Charging speed: 15 min (max)

  • Warranty: 1 year unlimited hours

  • After warranty: Buy Back option after the warranty

  • Repair option: Yes

  • Technology: Li-Ion

BSR X4 & X5 Charger - 3.5 kW

  • Power: 3.5kW

  • Input Voltage: 90V–260VAC, 50–60Hz

  • DC Output: 109.2V 32A

  • Charging Mode: CC/CV (Constant Current / Constant Voltage)

  • Size: 295 x 205 x 110 mm (150 w/ handle)

  • Net Weight: 10kg

  • Material: Aluminium Case

  • Ingress Protection: IP67

 ​​​

Safety Features

  • Automatic Cut-Off: Prevents overcharging by automatically stopping the charging process when the battery is fully charged.

  • Overheat Protection: Shuts down the charger to prevent overheating, ensuring safe operation.

  • High Voltage Surge Protection: Guards against voltage spikes from the power source.

  • Reverse Polarity Protection: Prevents damage if the battery is connected incorrectly.

  • Short Circuit Protection: Automatically disconnects power if a short circuit is detected.


BSR X3 Charger - 2.4 kW

Power: 2.4kW
Input Voltage: 90V–260VAC, 50–60Hz
DC Output: 109.2V 20A
Charging Mode: CC/CV (Constant Current / Constant Voltage)
Size: 282 x 170 (196 w/ handle) x 90 mm
Net Weight: 6.5 kg
Material: Aluminium Case
Ingress Protection: IP67



Safety Features


Automatic Cut-Off: Prevents overcharging by automatically stopping the charging process when the battery is fully charged.
Overheat Protection: Shuts down the charger to prevent overheating, ensuring safe operation.
High Voltage Surge Protection: Guards against voltage spikes from the power source.
Reverse Polarity Protection: Prevents damage if the battery is connected incorrectly.
Short Circuit Protection: Automatically disconnects power if a short circuit is detected.


BSR Charging Dock - dual charging

SPECIFICATION

  • Input voltage: 90-265VAC

  • Rated power: 2.4kW

  • Efficiency: 93%

  • Nominal Output Voltage: 48VDC

  • Max Output Current: 40A

  • Max Charging speed: 15 min (20-90%)

  • Indications: Automated charging, LED indicators

  • Cooling: Air cooling for charger and battery

  • Warranty: 1 year unlimited hours
